FencCoat Finish
Jerith’s FencCoat powder coating system produces a high quality, long-lasting finish that is also environmentally friendly.
Jerith Legacy
Style #200
Buy American Act
All components of this system are manufactured in the USA and meet the Buy American Act.
Lifetime Warranty
With 50 years of manufacturing experience, you can be confident that your ornamental aluminum fence will last a lifetime.
Pickets: 5/8" square x .050" thick
Space Between Pickets: 3-13/16" (1-5/8" for styles #400, #401 & #402)
Rails: 1" (.082" side wall) x 1" (.055" top wall)
Gate Ends: 1 5/8" sq. x .125" wall
Posts Options:
- 2" square x .060" wall (standard)
- 2" square x .125" wall
- 2.5" square x .075" wall or .125" wall
- 3" square x .090" wall or .125" wall
- 4" square x .125" wall
Standard Post Spacing: 72-1/2" on center (2" posts)

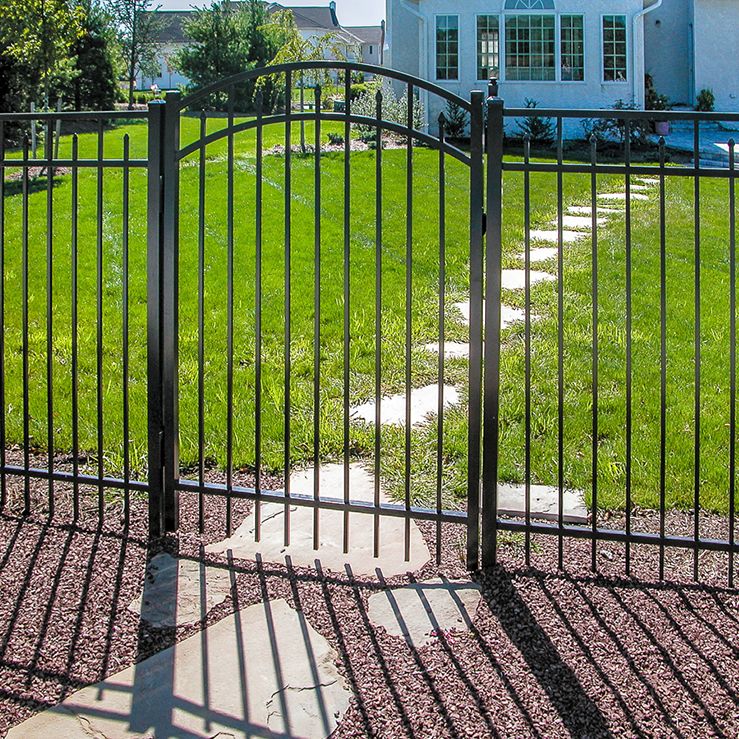

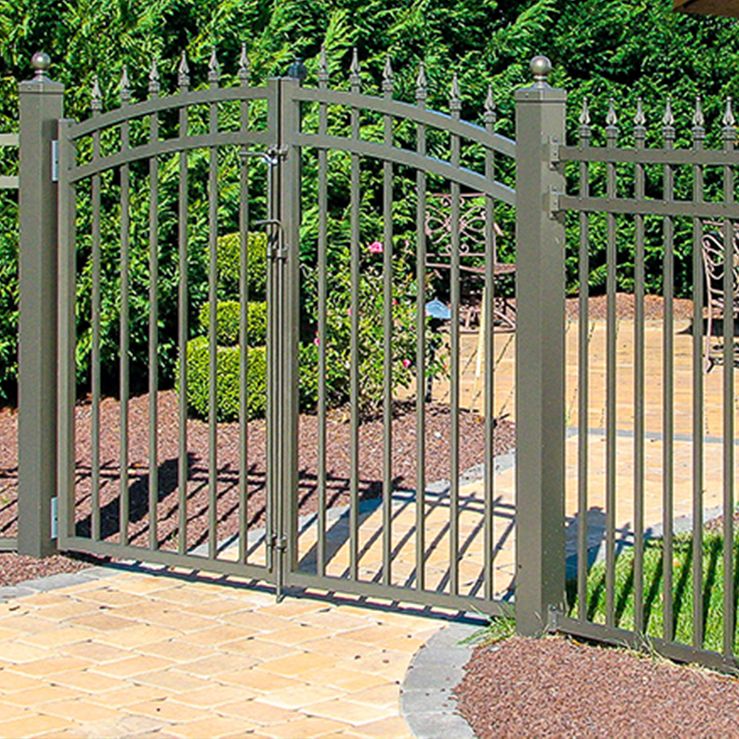

Legacy & Liberty share the same swing gate and are now fully welded! Gates will match the fence style and are available in standard or an arched design.

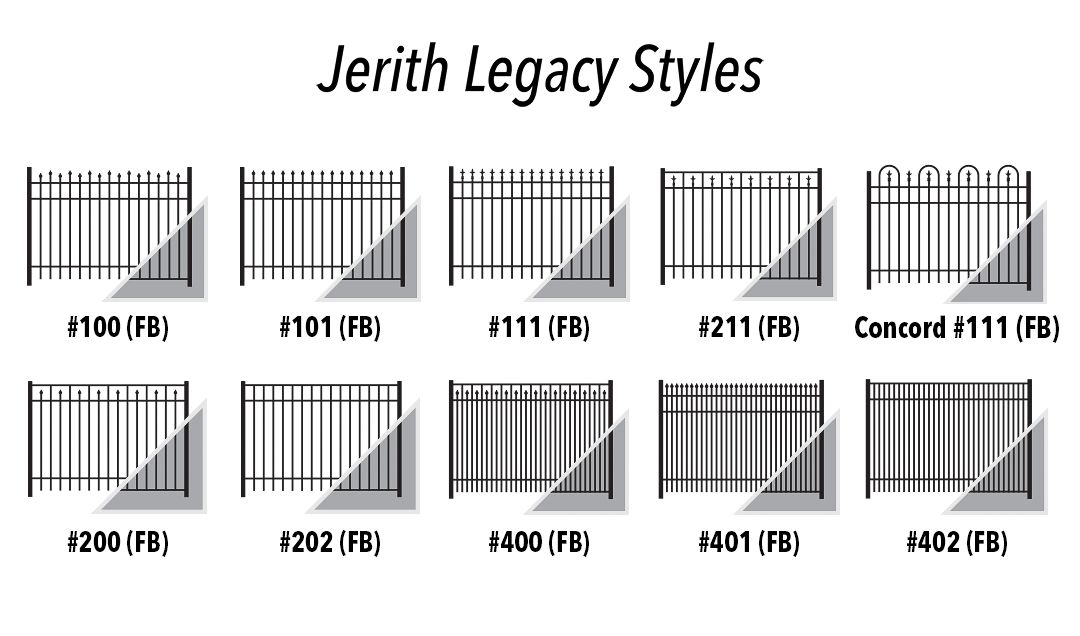

Fence Styles
#100 Flat Top Panel
- Available in 36", 42", 48", 60" & 72" heights
- Flush bottom is available in 57" heights
#101 Exposed Pickets
- Available in 36", 42", 48", 60" & 72" heights
- Flush bottom is available in 57" heights

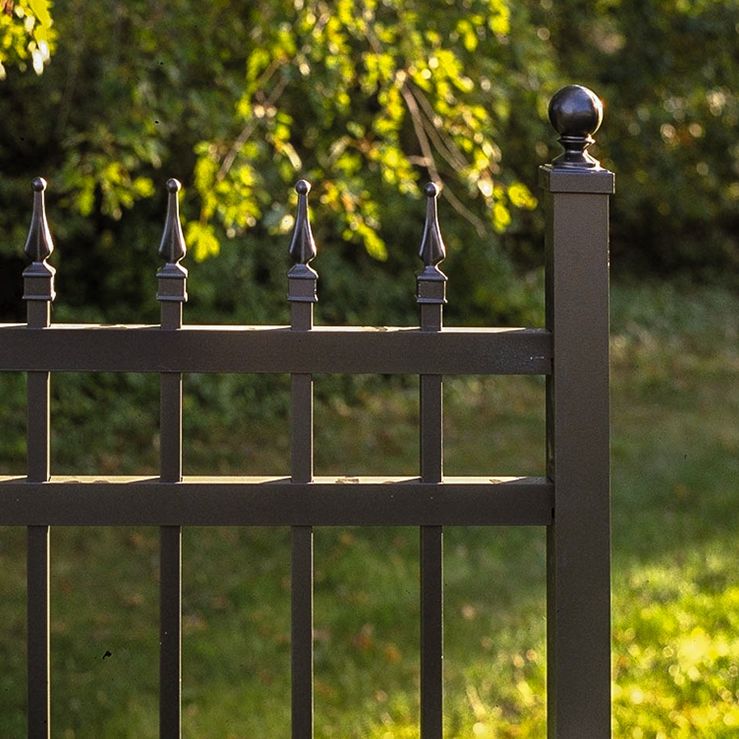

#111 Exposed Pickets w/ Finials
- Available in 36", 42", 48", 60" & 72" heights
- Flush bottom is available in 57" heights

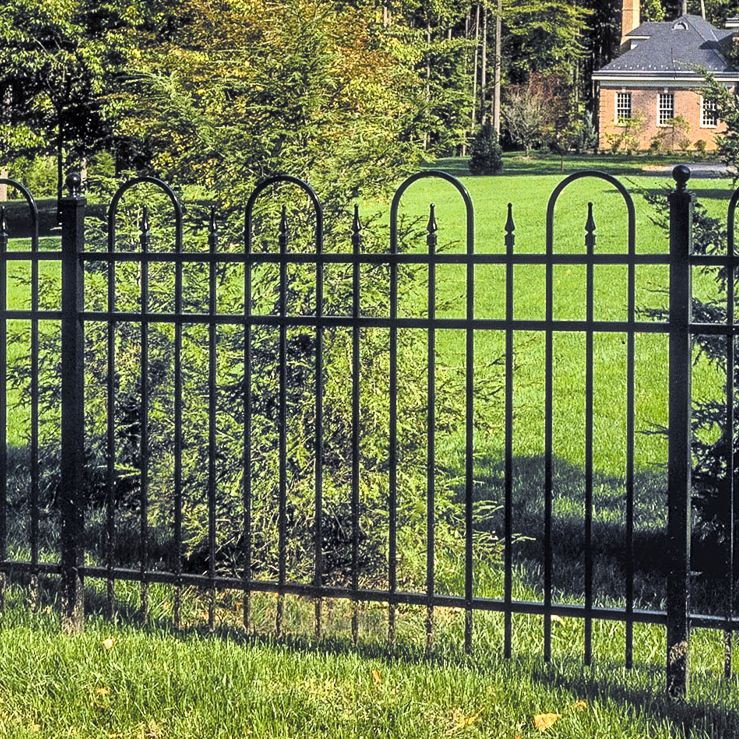

Concord #111 Exposed Pickets w/ Finials
- Available in 36", 42", 48", 60" & 72" heights
- Flush bottom is available in 57" heights
#200 Covered Pickets
- Available in 36", 42", 48", 60" & 72" heights
- Flush bottom rail is available in 48" & 54" heights
#202 Flat Top Panel
- Available in 36", 42", 48", 60" & 72" heights
- Flush bottom rail is available in 48" & 54" heights
#211 Covered Pickets w/ Finials
- Available in 36", 42", 48", 60" & 72" heights
- Flush bottom is available in 54" heights
#400 Covered Pickets w/ Reduced Spacing
- Available in 36", 42", 48", 60" & 72" heights
- Features reduced picket spacing for safety
- Flush bottom is available in 48" & 60" heights
#401 Exposed Pickets w/ Reduced Spacing
- Available in 36", 42", 48", 60" & 72" heights
- Features reduced picket spacing for safety
- Flush bottom is available in 48" & 60" heights
#402 Flat Top Panel w/ Reduced Spacing
- Available in 36", 42", 48", 60" & 72" heights
- Features reduced picket spacing for safety
- Flush bottom is available in 48" & 60" heights
Note: 4-rail is standard for 6' height, 3-rail is standard for all other heights. Styles 111, 211 & Concord 111 are manufactured to accept finial options. Concord 101 style is available with pressed pickets in lieu of finials. All Concord styles are approx. 3" taller than standard heights
