FencCoat Finish
Jerith’s FencCoat powder coating system produces a high quality, long-lasting finish that is also environmentally friendly.
Jerith Industrial
Style #101
Buy American Act
All components of this system are manufactured in the USA and meet the Buy American Act.
Lifetime Warranty
With 50 years of manufacturing experience, you can be confident that your ornamental aluminum fence will last a lifetime.
Pickets: 1" square x .062" wall
Space Between Pickets: 4" (1-1/2" for styles #401 & #402)
Rails: 1-5/8" (.100" side wall) x 1-5/8" (.070" top wall)
Posts Options:
- 2-1/2" square x .075" wall (standard)
- 2-1/2" square x .125" wall
- 3" square x .090" wall or .125" wall
- 4" square x .125" wall
- 6" square x .125" wall
Standard Post Spacing:
- 90" on center (2-1/2" post)
- 72-1/2" on center for styles #401 & #402

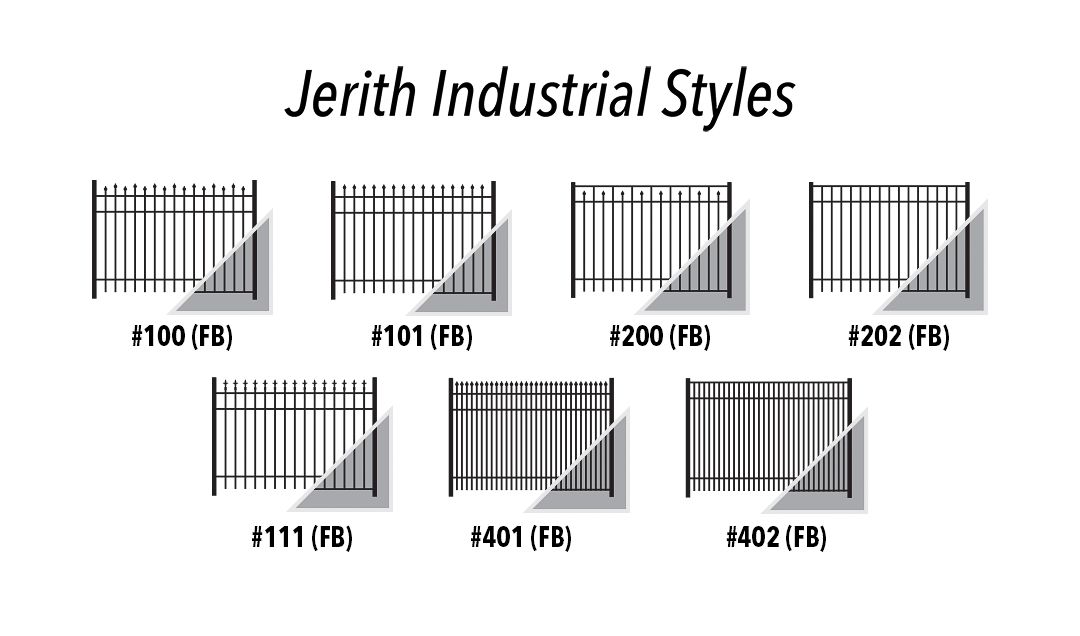

Fence Styles
#100 Flat Top Panel
- Available in 36", 48", 60", 72", 84" & 96" heights
- Flush bottom is available in 36", 48", 60", 72", 84" & 96" heights
#101 Exposed Pickets
- Available in 36", 48", 60", 72", 84" & 96" heights
- Flush bottom is available in 36", 48", 60", 72", 84" & 96" heights
#111 Exposed Pickets w/ Finials
- Available in 36", 48", 60", 72", 84" & 96" heights
- Flush bottom is available in 36", 48", 60", 72", 84" & 96" heights
#200 Covered Pickets
- Available in 36", 48", 60", 72", 84" & 96" heights
- Flush bottom is available in 36", 48", 60", 72", 84" & 96" heights
#202 Flat Top Panel
- Available in 36", 48", 60", 72", 84" & 96" heights
- Flush bottom is available in 36", 48", 60", 72", 84" & 96" heights
#401 Exposed Pickets w/ Reduced Spacing
- Available in 48", 60", 72", 84" & 96" heights
- Features reduced picket spacing for safety
- Flush bottom is available in 48", 60", 72", 84" & 96" heights
#402 Flat Top Panel w/ Reduced Spacing
- Available in 48", 60", 72", 84" & 96" heights
- Features reduced picket spacing for safety
- Flush bottom is available in 48", 60", 72", 84" & 96" heights
Note: 4-rail is standard for 7' & 8' height, 3-rail is standard for all other heights.
Styles #111 is manufactured to accept finial options.
Style #401 & #402 only available in 6' sections
DWG Drawings
