Limited Lifetime Warranty
Our aluminum framework undergoes a 9-stage powder coat treatment and is backed by a limited lifetime warranty.

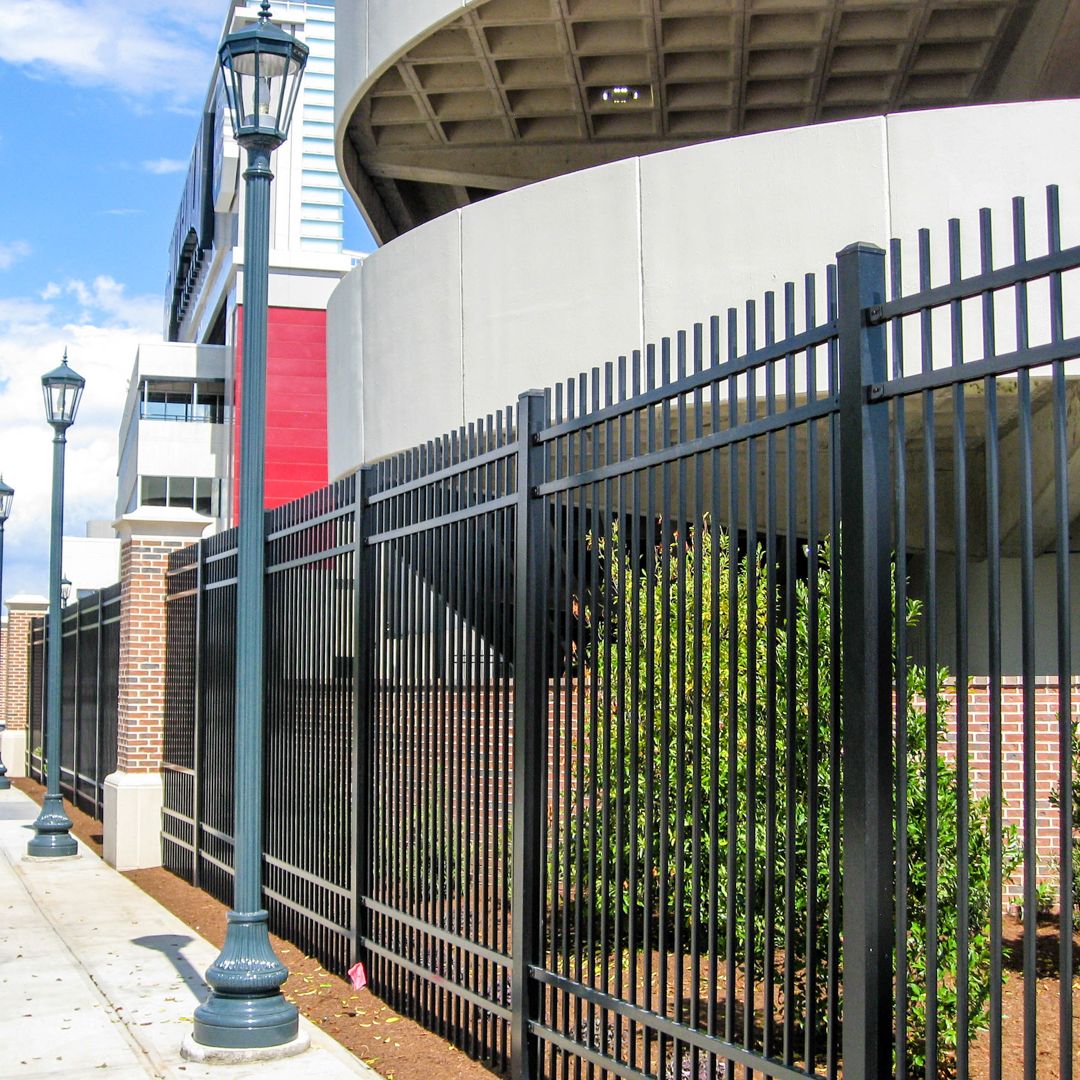

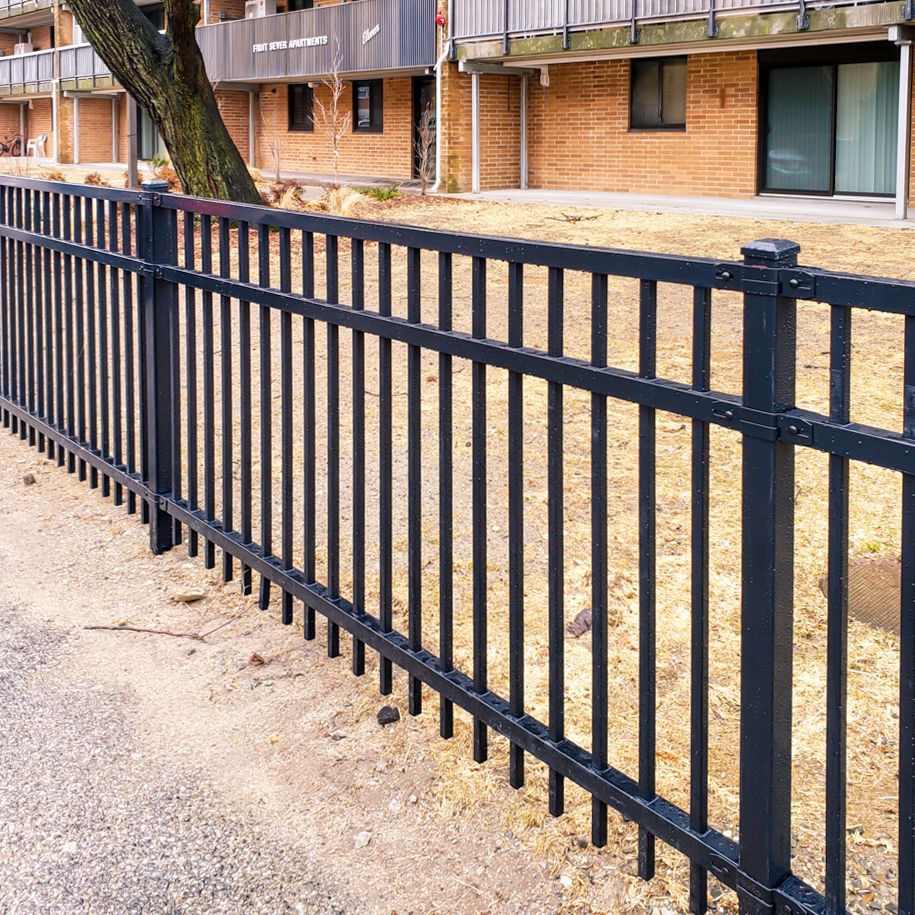

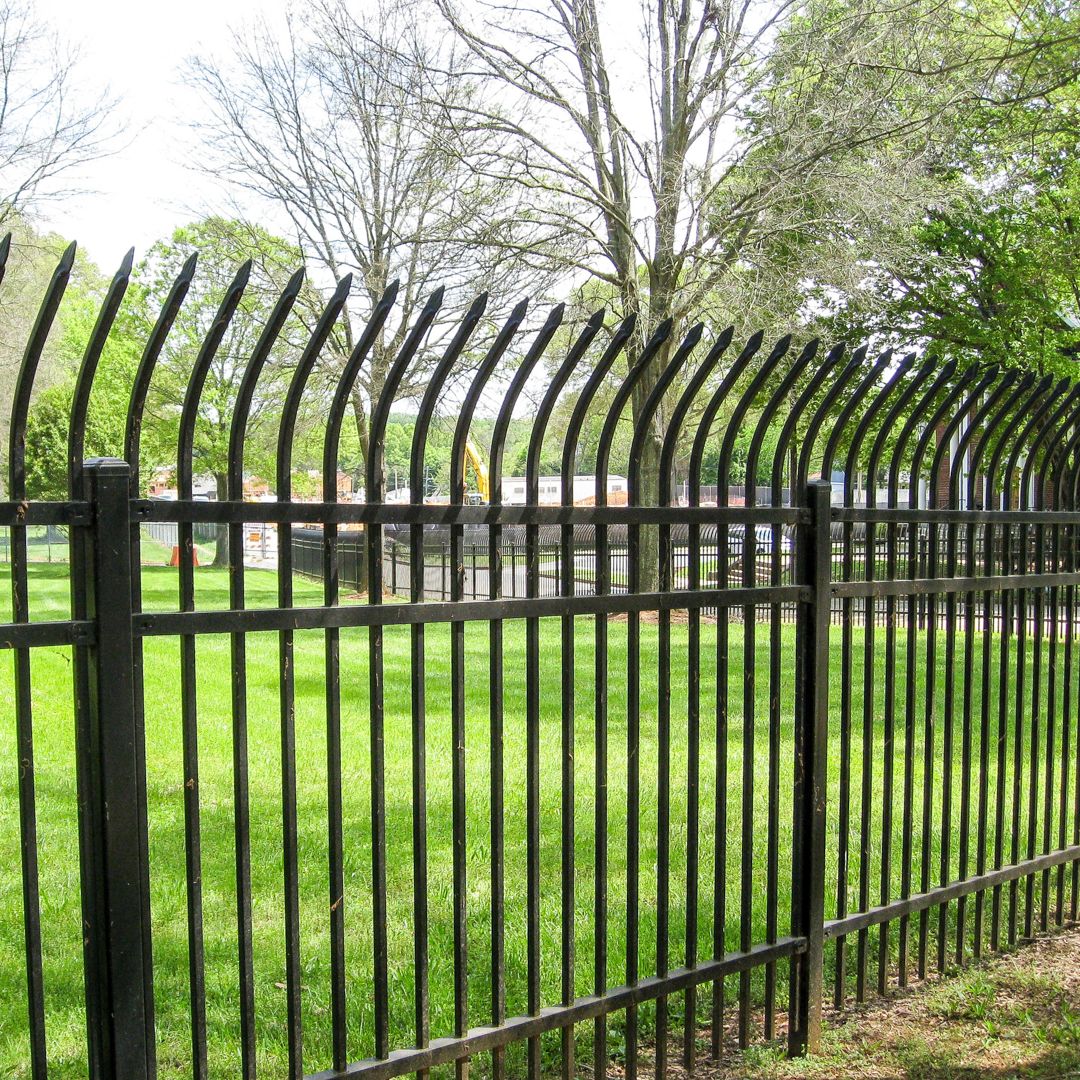

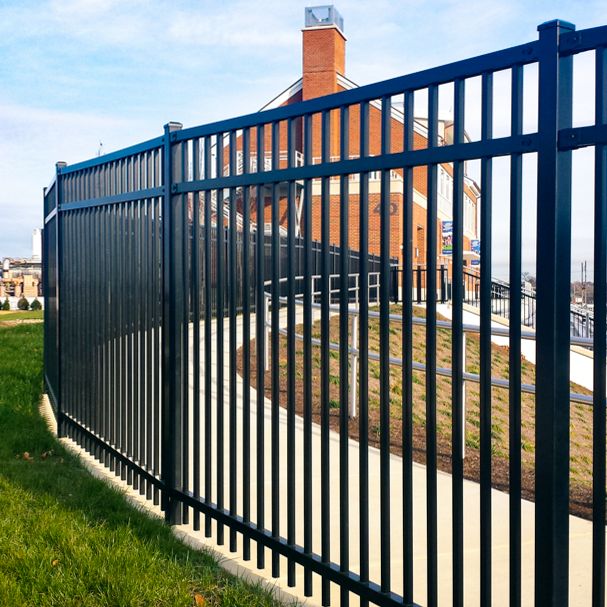

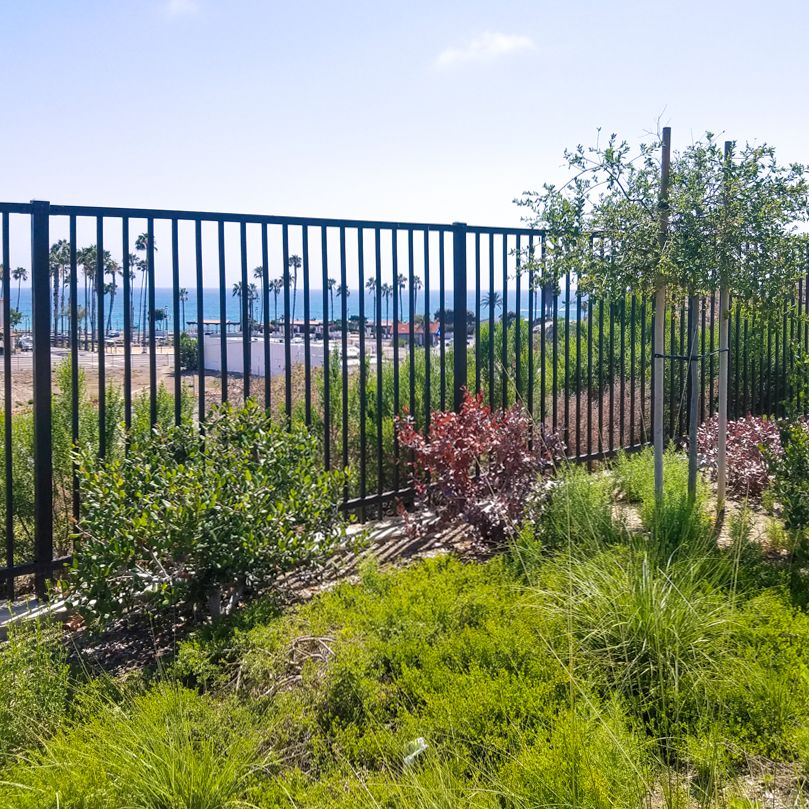

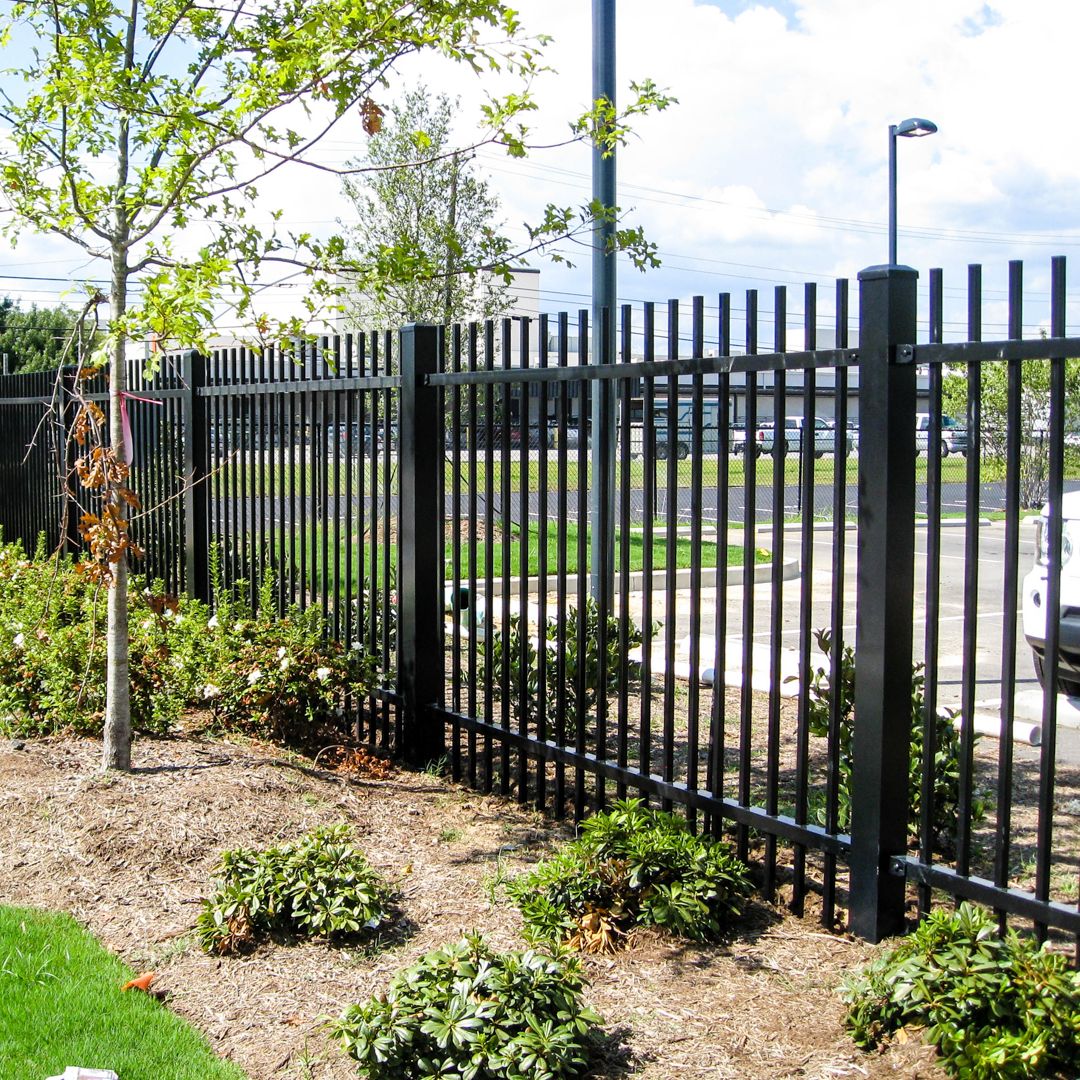

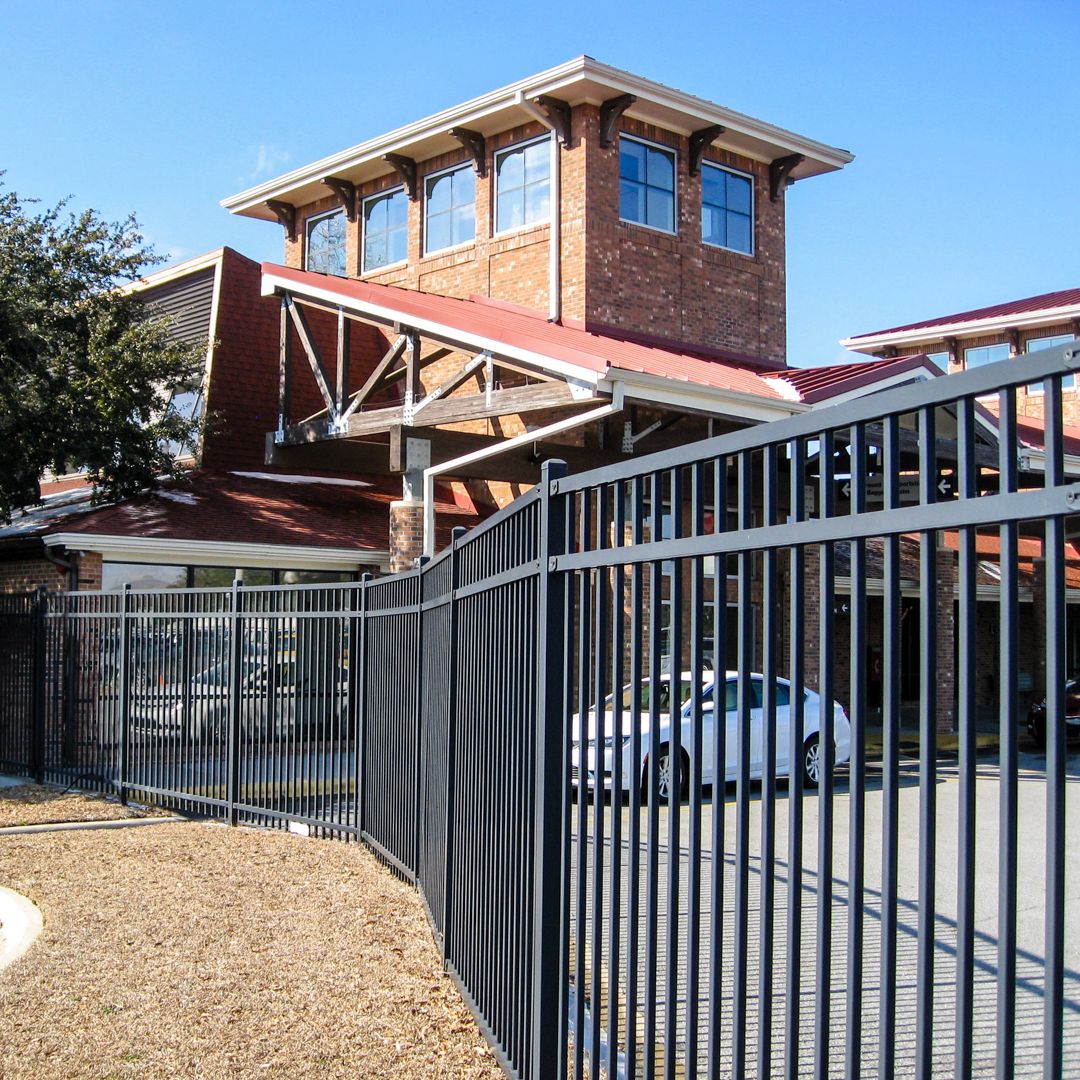

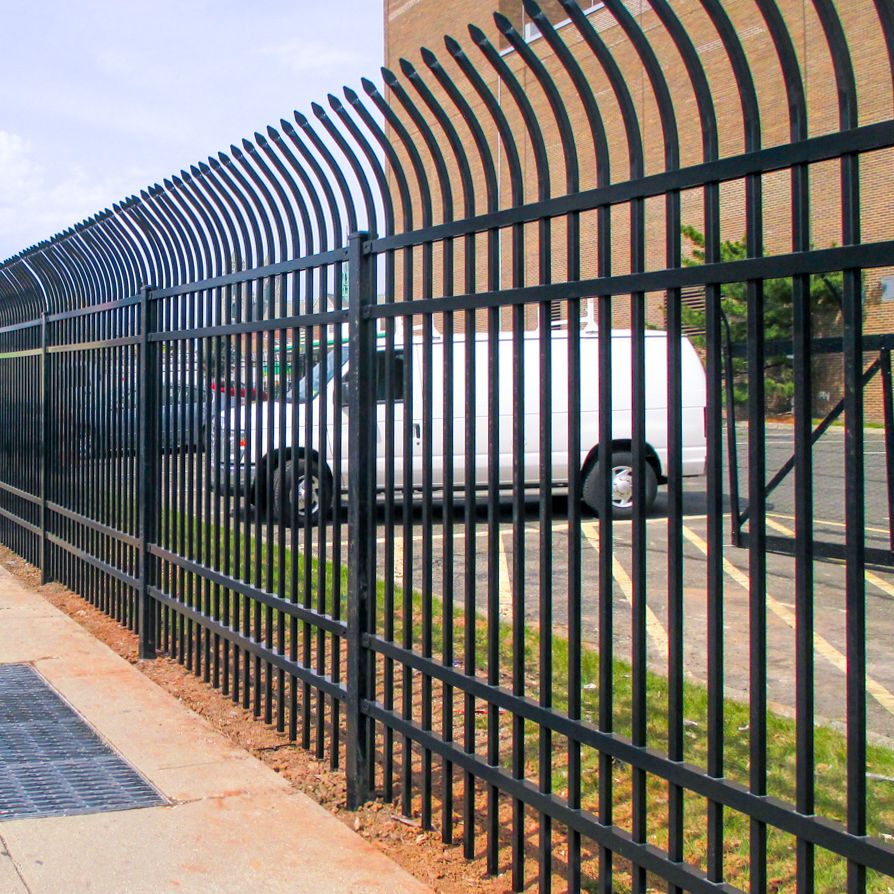

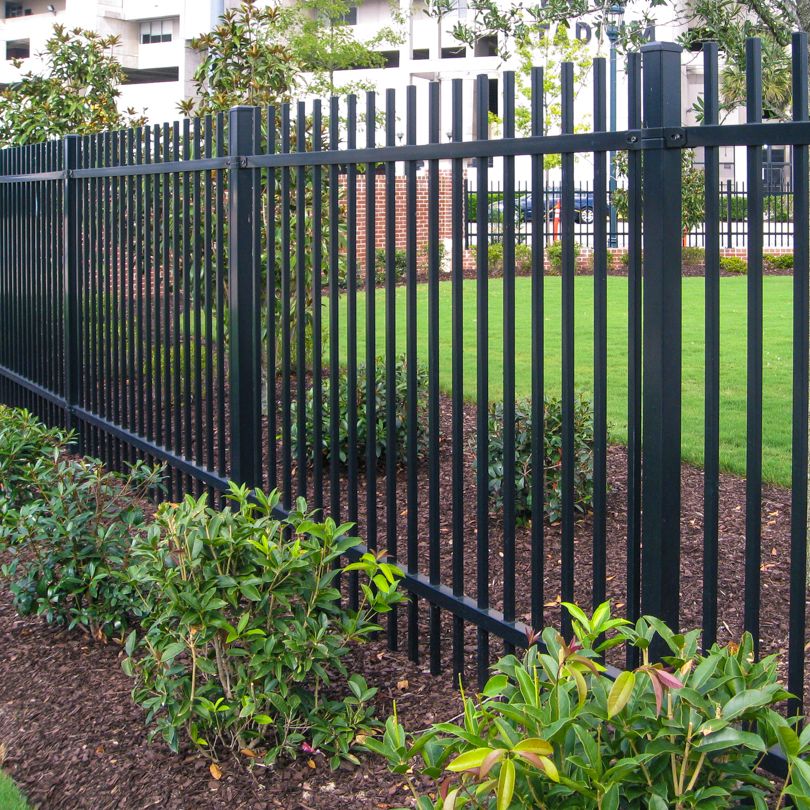

Echelon II
ForeRunner Locking System
The ForeRunner Rail contains an internally secured rod and "U" Channel rail that increases strength through architecture.
IBC Compliant
Both Echelon II and Echelon Plus offer IBC Compliant options! Reach out to us to learn more.
Buy American Act
All components of this system are manufactured in the USA and meet the Buy American Act.
Pickets: 1"sq x .062" wall / 1"sq x .125" wall invincible only
ForeRunner™ Rails: 1.75" x 1.75" x(.070" side & top wall)
Posts: 2.5"sq x .080" & 3"sq x .120" wall
Heights: 4', 5', 6', 7', 8', 9' & 10'
IBC Compliant Configuration:
- 2 or 3 rails
- 3” sq. x 0.125" min posts
- All brackets (flat mount and swivel must be thru-bolted)
- For plated posts: 8" x 8" min plates with gussets
Fence Styles
Classic Majestic Genesis Invincible 4 Rail Panels
- Available in 8', 9' & 10' height
- Standard bottom rail
- 4" standard picket airspace
3 Rail Panels
- Available in 4', 5', 6' & 7' height
- Standard bottom rail
- 4" standard picket airspace
2 Rail Panels
- Available in 4', 5' & 6' height
- Standard bottom rail
- 4" standard picket airspace
Documents
DWG Drawings
PDF Drawings
